Other things I have bought


Around this time, I started to run out of cables, and I wanted to stock up on some new items.

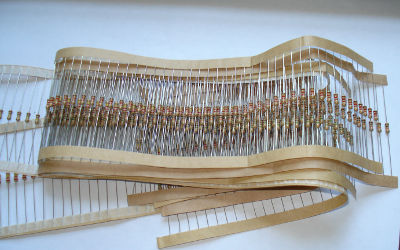

More resistors. These come in strips of 100 Resistors

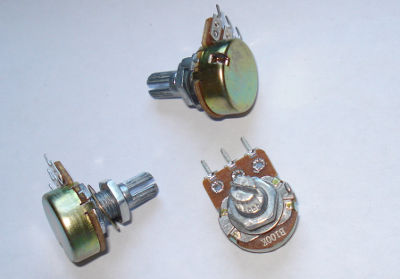

Potentiometers. I chose 6 of varying values. Potentiometers

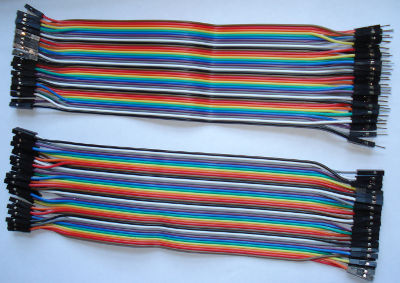

Strip cables. Male to Female, and Female to Female. Strip cables

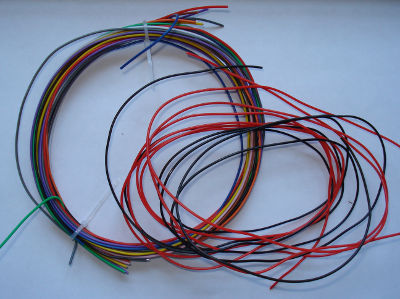

I was running out of cable. cables
A nokia mobile phone screen looked interesting.
However, apart from the backlight coming on, none of the datasheets I found nor example sketches produced anything on the screen. I'll come back to it when I need it.
Nokia screen
Soldering iron. An essential piece of kit, I choose lead free solder to use. Soldering Iron
A few DC motors and a couple of L293D ICs.
The L293D seems a great chip, capable of driving a motor at varying speeds in both directions.
The motors had a 2mm shaft, I struggled to find any useful cogs to fit onto this.
DC motors
Battery holders and 50 AA batteries. Investigating how to optimise arduino power usage, I came across the sleep cpu functions. Batteries and holders

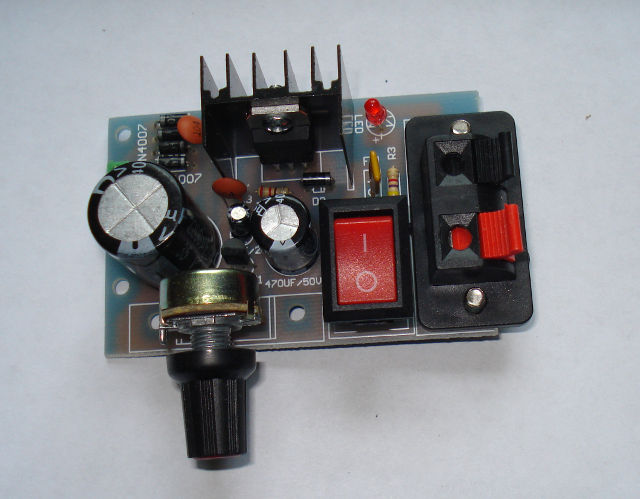

A power transformer and regulator, based on the LM317 chip. These are sold inexpensively as a complete kit with pcb board, making this an excellent way to hone soldering skills with a useful end product.

The output voltage is adjustable using the pot.

See here.
LM317 voltage regulator.

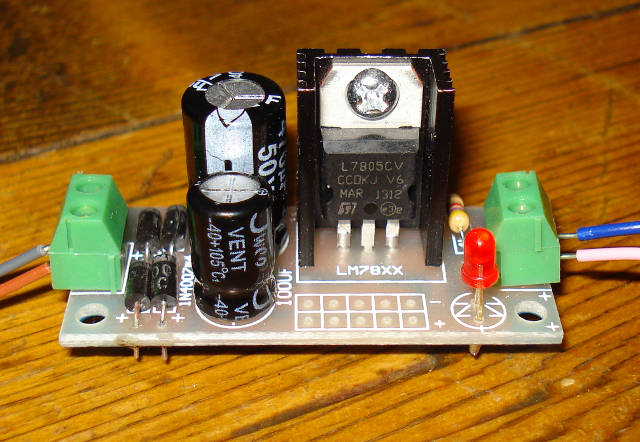

A 5V power supply. Chuck in a voltage (check the kit that you buy) and you get a steady 5V DC out. This is ideal to wire up to a 9V battery for a transportable arduino power supply - so any robot that you build will need something similar.
This is the kit based on the L7805 chip, see here.
LM317 voltage regulator.

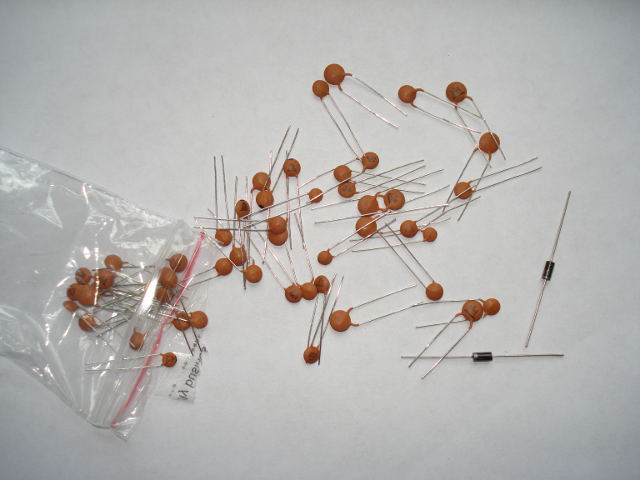

A mixed bag of capacitors. These were ordered when I found a circuit for the infra red remote control.
Also 2 diodes !
Capacitors

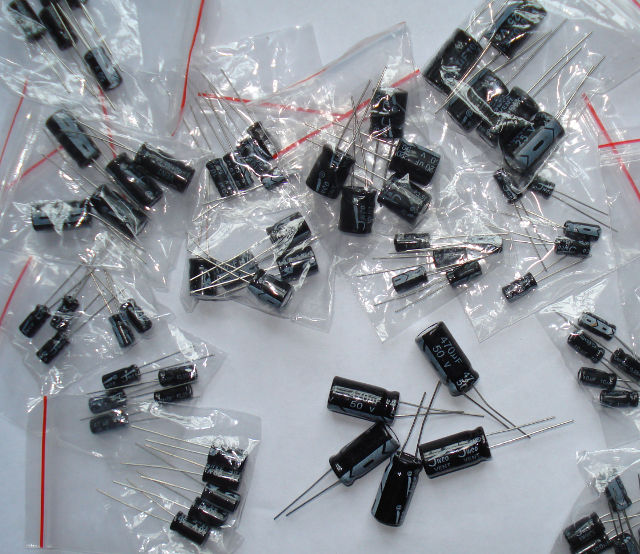

Another mixed bag of a different type (electrolytic) of capacitors. Capacitors

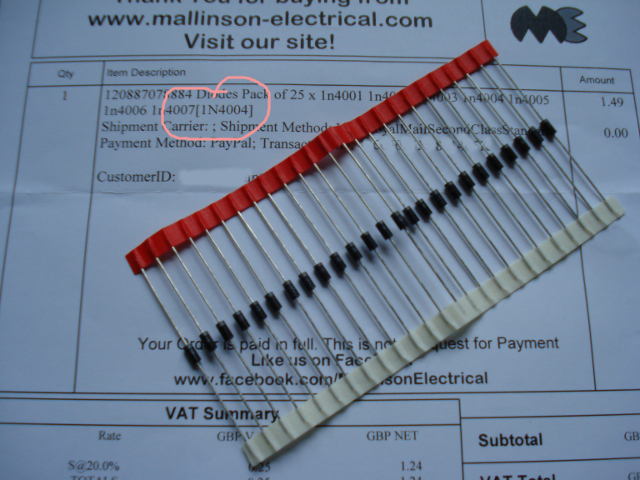

1N4004 diodes. See wikipedia for the difference between the 1N4004 diode and others in it's range. Diodes
An ultra sonic distance detector. I want to make a robot that can prevent walking itself into chairs !

Photo next to a tealight candle for scale.
Ultra sonic distance sensor
A variety of transistors, to see how they work and what they do. Transistors
